When you read product datasheets for EPA supplies, « static dissipative » and « ESD protective » often appear as if they were interchangeable labels. They are not. One describes a precise electrical property; the other covers a broader functional category. Mixing them up can lead to purchasing decisions that leave sensitive components vulnerable to electrostatic discharge.
Direct answer: « Static dissipative » refers to a material whose surface resistance falls between 1.0 × 10⁴ and 1.0 × 10¹¹ ohms, allowing charges to bleed off at a controlled rate. « ESD protective » is a wider umbrella term for any material — dissipative, conductive, or shielding — designed to reduce electrostatic damage within an ESD protected area.
What you need to know before choosing a material
- Static dissipative is one of three electrical property classes defined by surface resistance.
- ESD protective is a functional category that can include dissipative, conductive, and shielding materials.
- The right choice depends on your specific EPA application — flooring, packaging, work surfaces, or garments.
- Always verify compliance against a recognized standard such as ANSI/ESD or IEC 61340 before purchasing.
What Is the Difference Between Static Dissipative and ESD Materials?
Static dissipative describes a narrow, measurable property: the material’s ability to drain electrostatic charges to ground at a controlled speed. ESD protective, by contrast, is a functional designation applied to any product engineered to prevent electrostatic damage in an EPA — regardless of the specific mechanism it uses.
The distinction comes from standards bodies, not marketing departments. According to the ESD Association‘s glossary (ESD ADV1.0), materials are classified by surface or volume resistance into three categories: conductive (below 1.0 × 10⁴ ohms), dissipative (from 1.0 × 10⁴ to below 1.0 × 10¹¹ ohms), and insulative (1.0 × 10¹¹ ohms and above). Every static dissipative material can serve an ESD-control purpose, but not every ESD protective material falls into the dissipative range.
When you begin evaluating ESD protection materials for a new workstation or packaging line, the first step is to check which electrical property class each product belongs to rather than relying on the generic « ESD safe » label printed on the box.
| Aspect | Static Dissipative | ESD Protective |
|---|---|---|
| Definition type | Electrical property class | Functional performance category |
| Surface resistance range | ≥ 1.0 × 10⁴ to < 1.0 × 10¹¹ ohms | Varies by sub-type (conductive, dissipative, shielding) |
| Charge behavior | Controlled bleed-off to ground | Depends on material sub-type |
| Defined by | ANSI/ESD ADV1.0, IEC 61340 | Application-specific standards (e.g., IEC 61340-5-3 for packaging) |
| Typical examples | Bench mats, floor tiles, garment fabric | Shielding bags, conductive foam, ionizers, dissipative mats |
How Do Their Electrical Properties Differ in Practice?
The three material classes handle electrostatic charges in fundamentally different ways. Conductive materials provide a fast, low-resistance path to ground — useful when you need rapid charge equalization, but risky if the discharge current is too fast for the component. Dissipative materials slow that flow down, bleeding charges off over milliseconds to seconds, which is why they are the default choice for work surfaces that come into direct contact with sensitive boards. Insulative materials resist charge flow almost entirely and generally need to be kept away from ESDS devices unless neutralized by ionization.
A common source of confusion is the term « antistatic. » In everyday product descriptions, antistatic often means the material has been treated to reduce triboelectric charging — the generation of new static through friction. This is not the same as dissipative. An antistatic bag may limit charge generation but might not provide a reliable path to ground, which means it does not automatically qualify as a dissipative material. Always check the resistance specification rather than the marketing label.
Adding to the confusion, the terms « surface resistance » and « surface resistivity » are frequently used interchangeably in product literature even though they measure different physical quantities. As noted in a recent technical review of ESD measurement practices, what matters most for compliance is the resistance range the material falls into — conductive, dissipative, or insulative — and the test method used to determine it.
Which Material Should You Use in an EPA?
There is no single « best » ESD material for every situation. The right choice depends on the specific application within your EPA and the sensitivity level of the components you handle. A material that works well for flooring may be entirely wrong for packaging, and vice versa.

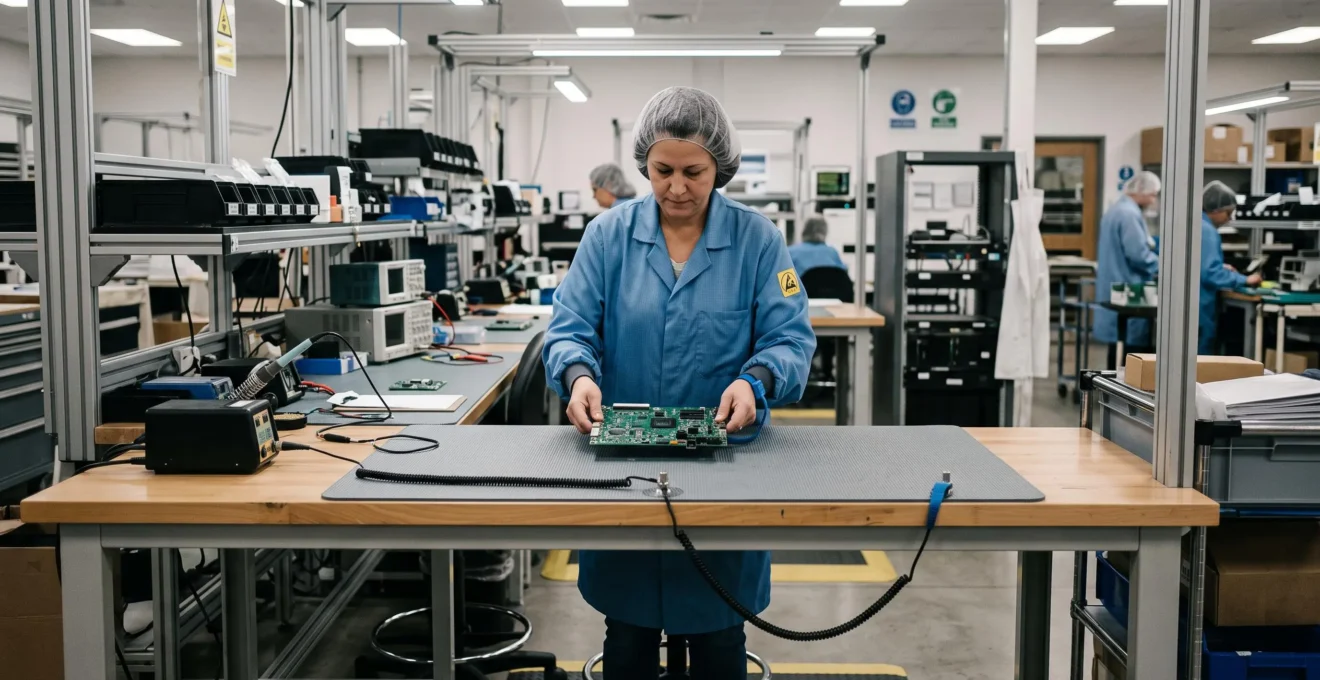

For work surfaces such as bench mats and shelf liners, static dissipative materials in the 10⁶–10⁹ ohm range are typically preferred because they drain charges at a rate fast enough to prevent buildup but slow enough to avoid damaging sensitive devices through rapid discharge. For flooring, dissipative tiles or mats in a similar range provide a controlled path to ground for personnel wearing ESD footwear.
Packaging introduces a different set of requirements. The IEC 61340-5-3:2022 standard for ESD protective packaging classifies materials by their ability to shield, conduct, or dissipate charges depending on the phase of production and transport. A metallized shielding bag, for example, is ESD protective but not dissipative in the traditional sense — it works by creating a Faraday cage around the component rather than by bleeding charges to ground.
- Workbench surfaces in direct contact with ESDS devices:

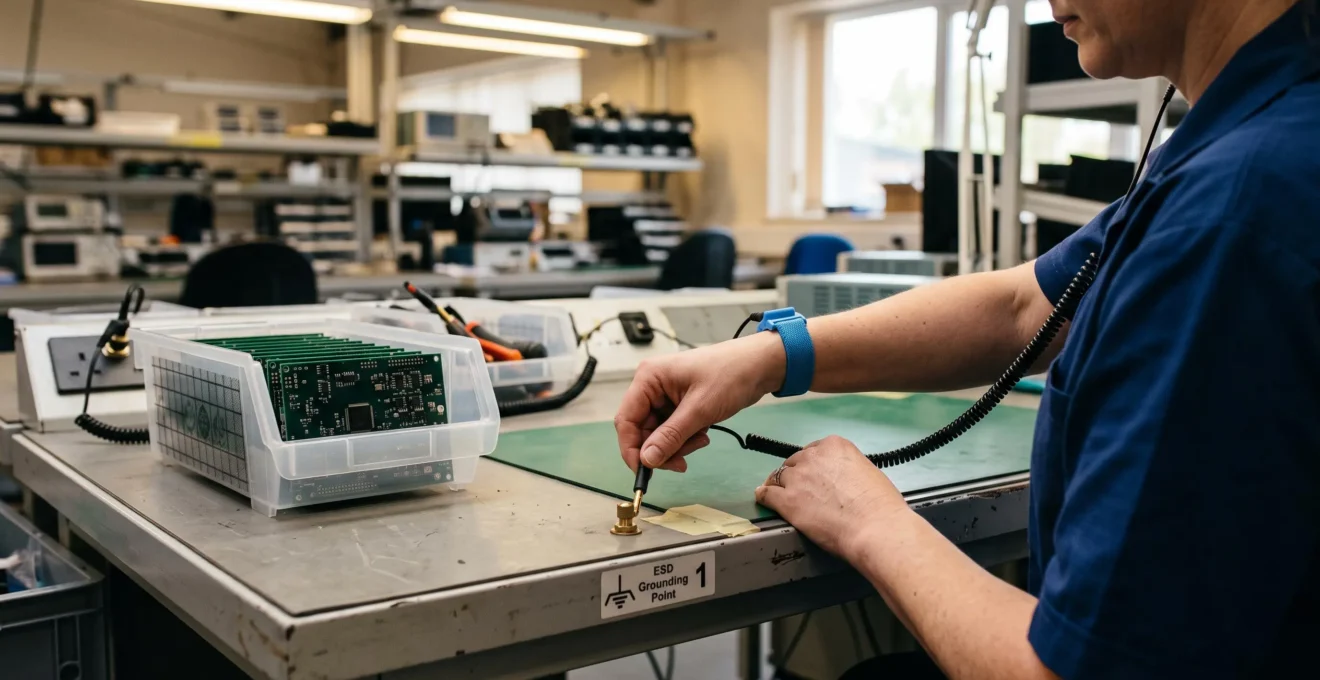

Choose static dissipative mats (10⁶–10⁹ ohms) grounded through a 1 MΩ resistor.
- Flooring in high-traffic EPA zones:

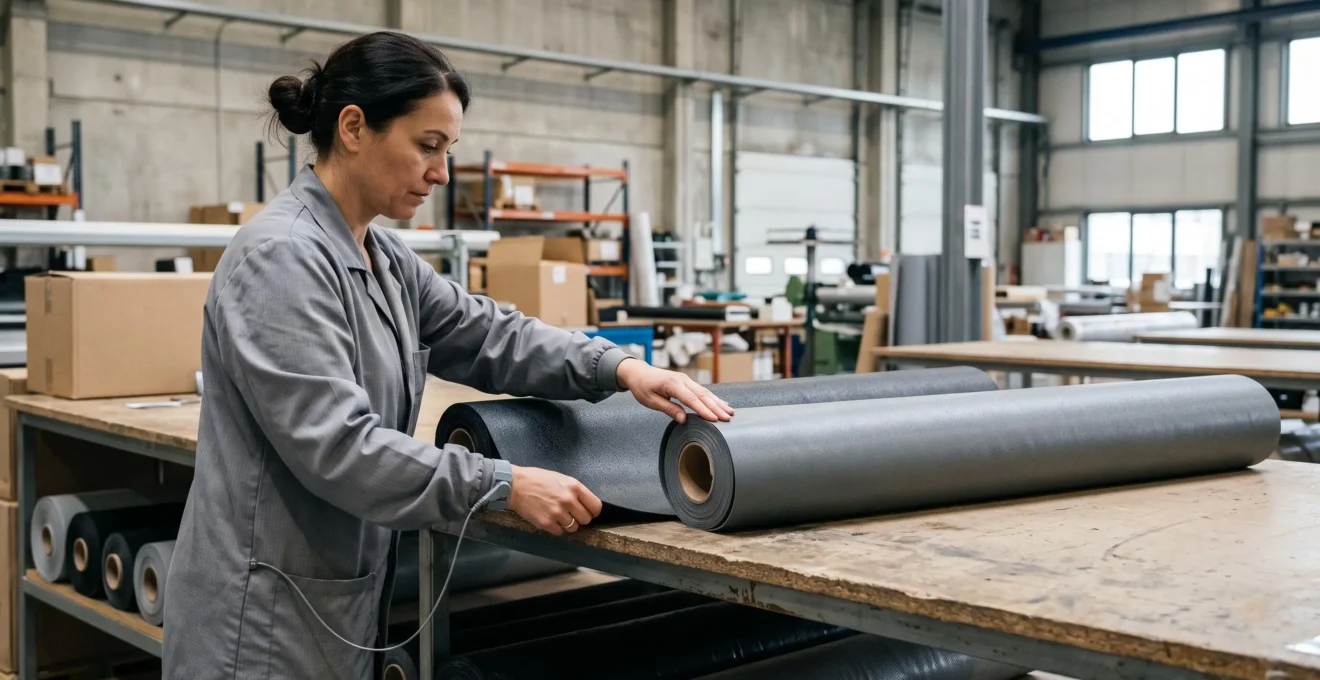

Use dissipative floor tiles or mats (10⁶–10⁹ ohms) paired with ESD footwear and grounding cords.
- Short-term packaging for board-level components:
Select dissipative or low-charging bags; verify compliance with IEC 61340-5-3.
- Long-term storage or shipping of highly sensitive devices:
Use metallized shielding bags or rigid conductive containers that provide electrostatic discharge shielding.
- Personnel garments:
Specify dissipative fabric (typically 10⁵–10⁸ ohms) that maintains performance after repeated laundering.
Standards vary by region and industry: The resistance ranges above reflect common ANSI/ESD and IEC benchmarks, but your facility may be subject to additional customer-specific or sector-specific requirements. Always confirm the applicable standard before finalizing a procurement decision.
How Can You Verify a Material Is Fit for ESD Protection?
The only reliable way to confirm a material’s ESD performance is to measure its surface resistance under controlled conditions and compare the result against the relevant standard. A product labeled « ESD safe » without a published resistance value or test method reference should be treated with caution.

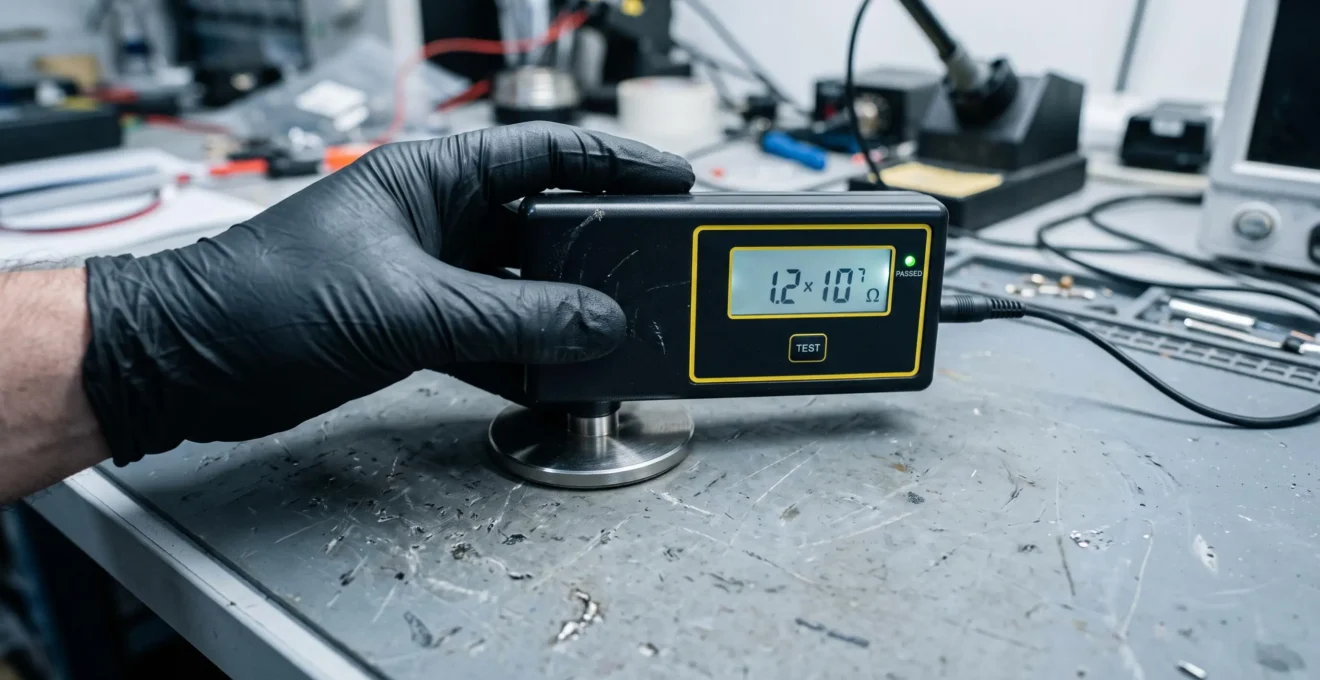

Surface resistance is typically measured using a megohmmeter with parallel or concentric ring electrodes placed on the material surface, following a procedure defined in standards such as ANSI/ESD STM11.11 or IEC 61340-2-3. The test should be performed at a specified voltage (often 10 V for materials below 10⁶ ohms and 100 V for higher-resistance materials) and under controlled humidity, because moisture content can significantly shift the reading.
Beyond the initial qualification test, periodic re-verification is essential. Dissipative mats can lose effectiveness as they accumulate dirt, wear down, or dry out over time. A practical approach is to include surface resistance checks in your EPA audit schedule — quarterly for high-use workstations, and at least annually for flooring and shelving. Document every measurement so you can track drift before it leads to a component failure.
Key Takeaways on Static Dissipative vs ESD Materials
Static dissipative is a specific electrical property defined by a surface resistance range of 1.0 × 10⁴ to below 1.0 × 10¹¹ ohms. ESD protective is a broader functional category that includes dissipative, conductive, and shielding materials — each suited to different tasks within an EPA. The label on the box is not enough: check the measured resistance, the test method, and the standard the product claims to meet.
If you are equipping a new EPA or auditing an existing one, start by mapping each application — work surfaces, flooring, packaging, garments — to the material class that matches its charge-control requirement. Then verify every product against the relevant ANSI/ESD or IEC standard before it enters your production environment. That single step eliminates most of the confusion that product datasheets tend to create.
Which material should I choose for packaging sensitive electronic components?
For most board-level components in short-term storage, a low-charging dissipative bag is sufficient. For highly sensitive devices or long-distance shipping, use a metallized shielding bag that meets IEC 61340-5-3 requirements. Always verify the bag’s resistance specification and shielding performance rather than relying on the term « antistatic » alone.
How do I know if a product meets ANSI/ESD or IEC standards?
Look for a published test report that references a specific standard (e.g., ANSI/ESD STM11.11 for surface resistance, IEC 61340-5-3 for packaging) and includes the measured resistance values. A product that simply states « ESD compliant » without citing a test method or resistance range has not provided enough information for you to verify its suitability.
Is an antistatic bag sufficient to protect components in an EPA?
Not necessarily. An antistatic bag reduces triboelectric charge generation but may not provide a controlled discharge path or electrostatic shielding. For sensitive devices inside an EPA, a dissipative or shielding bag with verified resistance values offers more reliable protection than a generic antistatic bag.
Choosing the right material starts with understanding what each term actually measures. Once you anchor your decisions to resistance values and recognized standards instead of product-sheet vocabulary, the selection process becomes straightforward — and your components stay protected.
